This guide is applicable for Monitoring & Alerting completely. For the documentation about Carrier Event Service, please check the Carrier Event Service documentation in the Carrier Cloud for SAP section.

Data structure

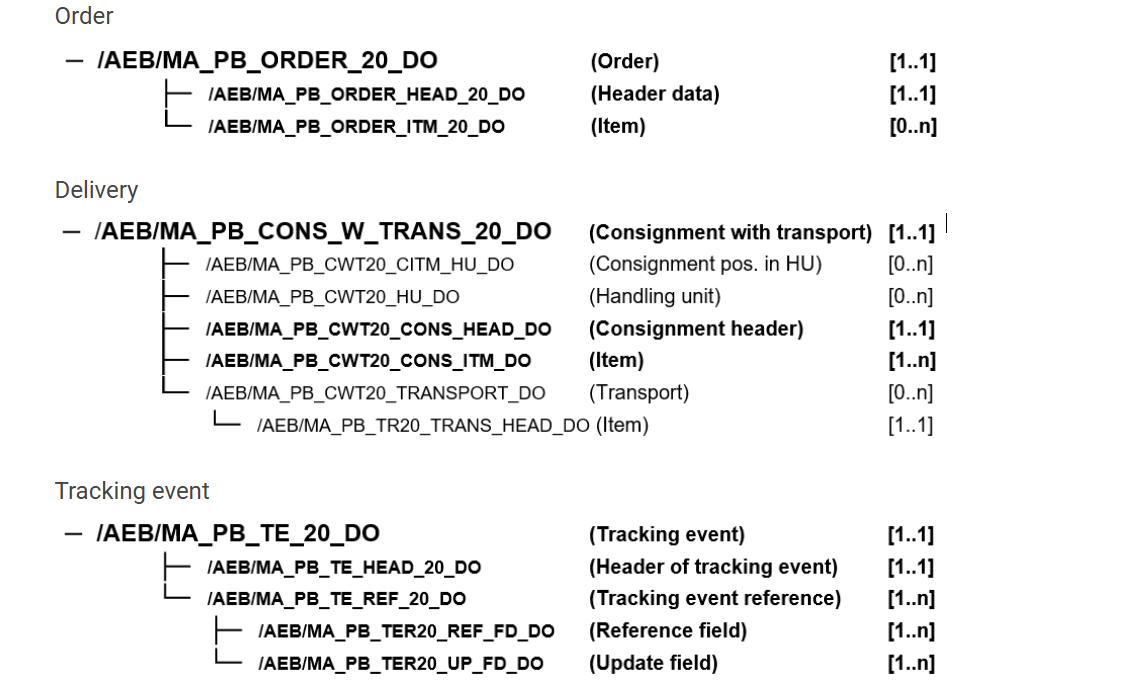

The following diagram represents the data structure for the Monitoring & Alerting interface. For greater clarity, the diagram only shows the functionally relevant structures. The names of the segments are enclosed in parentheses. The square brackets indicate how many times a segment may be repeated. Bold segments are mandatory segments. Without them the structure is invalid.

Example: (Transport) [0..n] means that there may be any number of transports specified per delivery (none is also allowed).
